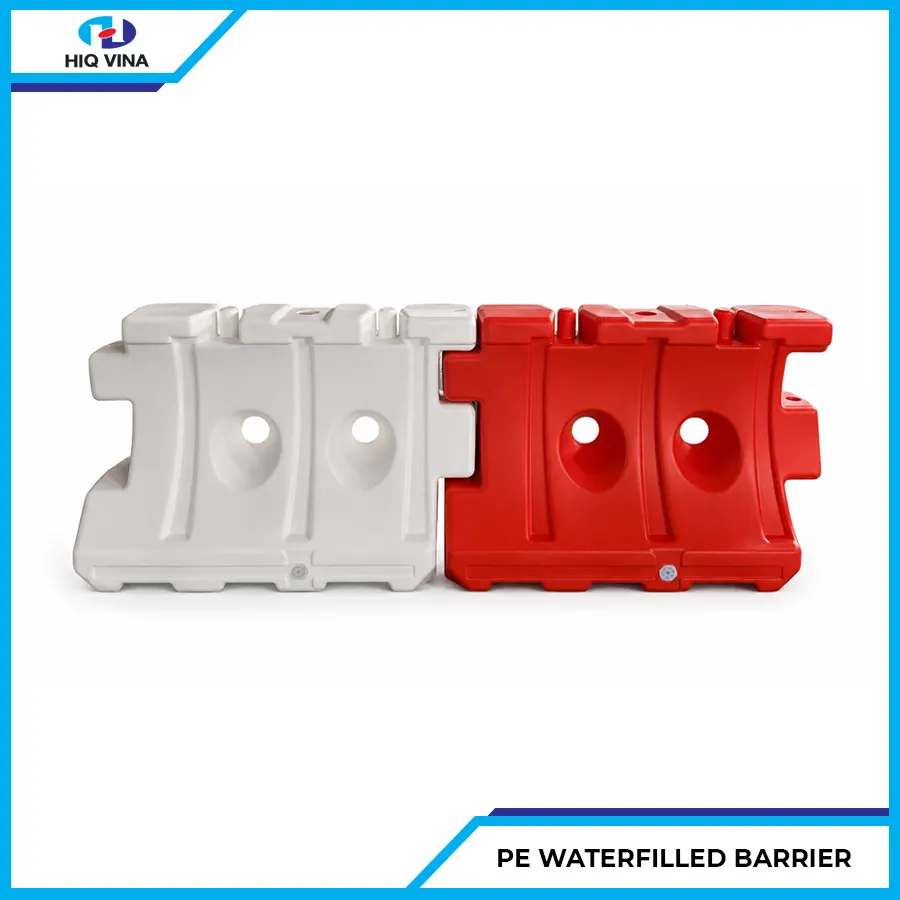

PE Waterfilled Barrier

Giá: Liên hệ

Technical Specifications

Lane Divider Dimensions: (L)1200mm x (W)600mm x (H)900mm

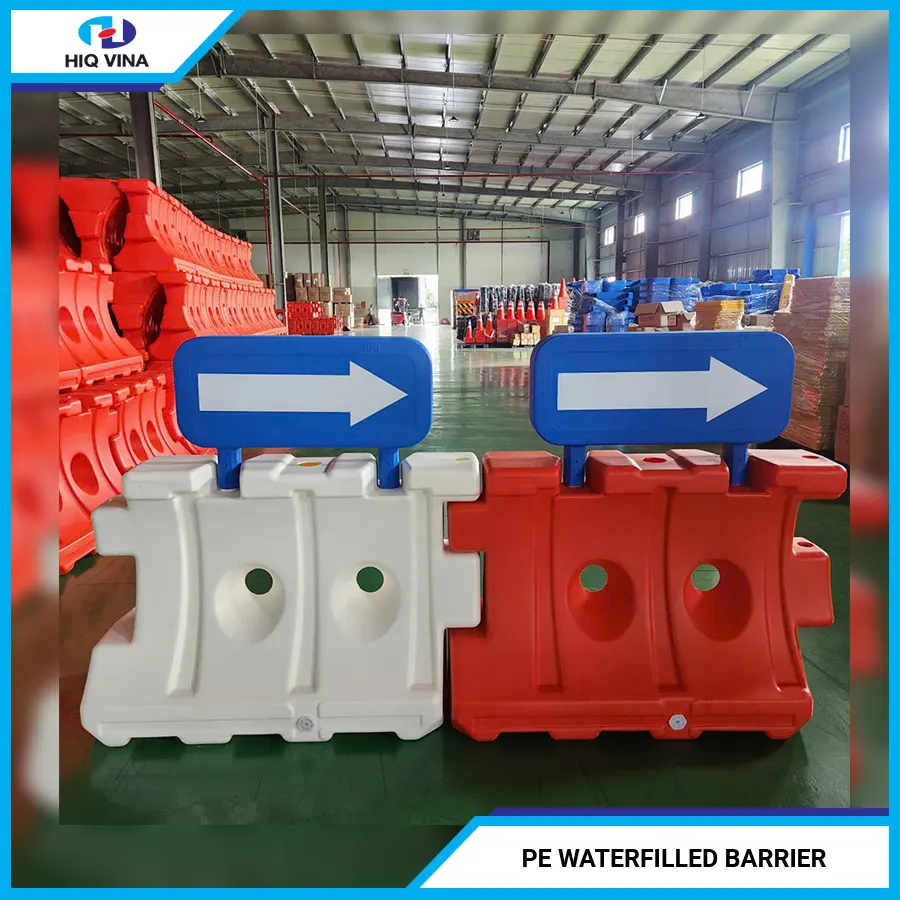

Arrow Dimensions: (L)890mm x (W)430mm x (H)120mm
Material: HDPE

+ The PE Waterfilled Barrier does not break upon impact.

+ The barrier, made from HDPE plastic, offers excellent durability and tensile strength, absorbing impact forces. The plastic will twist, minimizing damage to both the vehicle and the driver. The reflective arrow facilitates easy tracking for drivers at night.

+ The white and orange-red colors arranged consecutively enhance visibility for drivers.

Features

  • The product can be filled with water to increase its weight, providing greater resistance against strong winds and high-speed impacts.

  • It helps prevent secondary injuries in the event of a car collision with the barrier.

  • The barrier prevents vehicles from crossing into oncoming traffic lanes. Its installation mechanism and impact-absorbing plastic adjust the vehicle’s direction during a collision, reducing damage to both people and vehicles.

  • Installation is done by connecting two plastic pieces, with a metal bar in between for easy movement and creating a cushioning effect during collisions.

  • The product is easy to install and move, deployable in a short time.

  • It can be used to adjust traffic lanes when needed.

  • Can be combined with HDPE Crash Cushions, reflective markers, and guide posts to enhance visibility.

  • Installation of directional arrows can further improve effectiveness.

Installation Locations

  • Install behind HDPE Crash Cushions, along with cylindrical traffic lane dividers.

  • Install at the start of lane islands, lane separators, lane dividers, and direction markers.

  • Install on highways and national roads (recommended), in areas requiring lane division and lane direction changes.

  • Install at racetracks, vehicle testing grounds, driving schools, and vehicle testing areas.

Origin: Vietnam, produced using materials and technology from Korea.

Note: This product is recommended by HiQ VINA for installation on highways, toll stations, and areas prone to accidents to ensure the safety of drivers and minimize material damage to vehicles.

Technical drawing

Installation Guide

Order of Construction and Detailed Explanation:

a. Safety Measures:

  1. Implement safety measures to attract drivers’ attention.
  2. Ensure safety for both drivers and pedestrians on the road.
  3. Check the impact of the construction site on surrounding areas.

b. Construction:

  1. Install the barrier according to the design drawings and technical instructions.
  2. Inspect and clean any debris and waste at the construction site.
  3. Ensure the surface of the barrier is clean before proceeding.
  4. Arrange the colors of the barrier in the order of orange-red – white – orange-red – white.
    • You may install solid orange-red barriers or alternate with white depending on road conditions.
    • Schedule the installation at an appropriate time.
    • If there are angled corners, ensure the barriers fit tightly together.
  5. Install accurately according to the instructions, ensuring pipes connect properly to the holes.
  6. Verify that the installation complies with the design drawings.
  7. Open the cap on the barrier and fill it with water (calcium chloride can be added to prevent freezing if necessary).
  8. After installation, check:
    • No objects should protrude from the side of the barrier (facing traffic).
    • Installation locations match the specifications in the design.
    • Reflective materials are installed at the correct angles.
    • There are no leaks from the water inside.
  9. Complete the installation, ensuring safety and cleaning the area.
