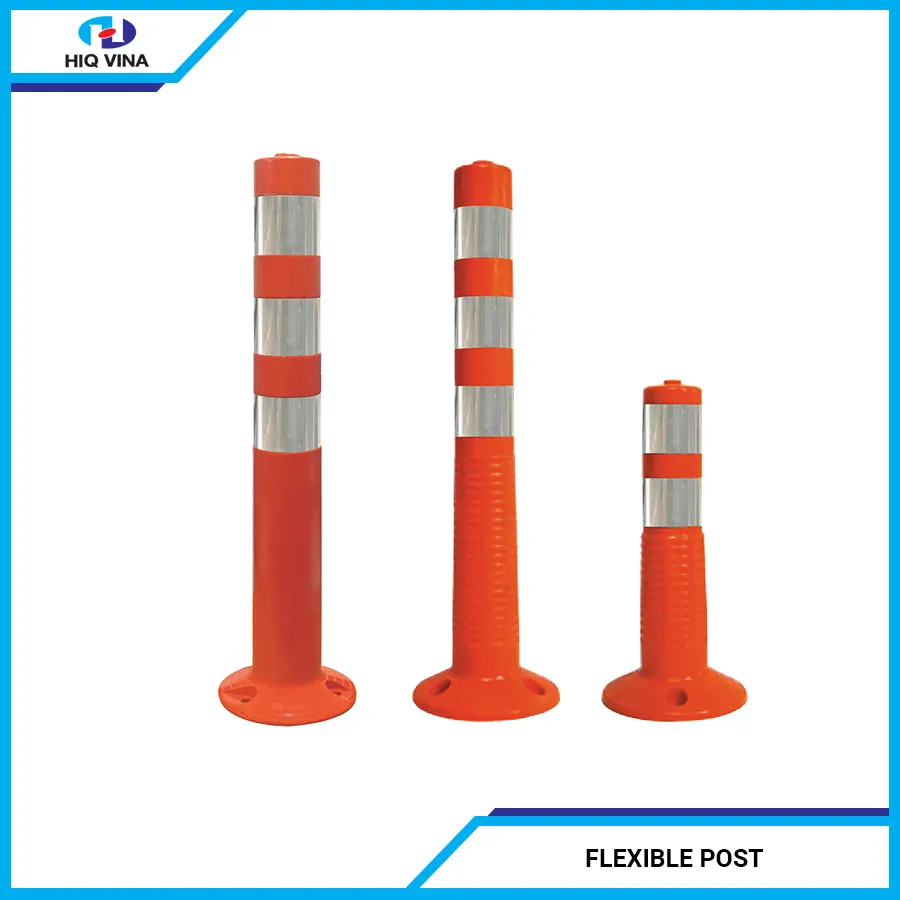

Flexible Post

Giá: Liên hệ

Technical Specifications

– Material: PolyUrethane (PU)
– Dimensions:
ø250 x ø80 x H750 mm
ø200 x ø80 x H750 mm
ø250 x ø80 x H450 mm

Flexible Post is an optimal warning tool, commonly placed in areas prone to accidents and locations requiring special attention.

Made from Polyurethane, this product boasts high durability and resistance to environmental factors such as weather and oxidation. Additionally, it is nearly “immune” to many inorganic and organic chemicals.

Product Strengths

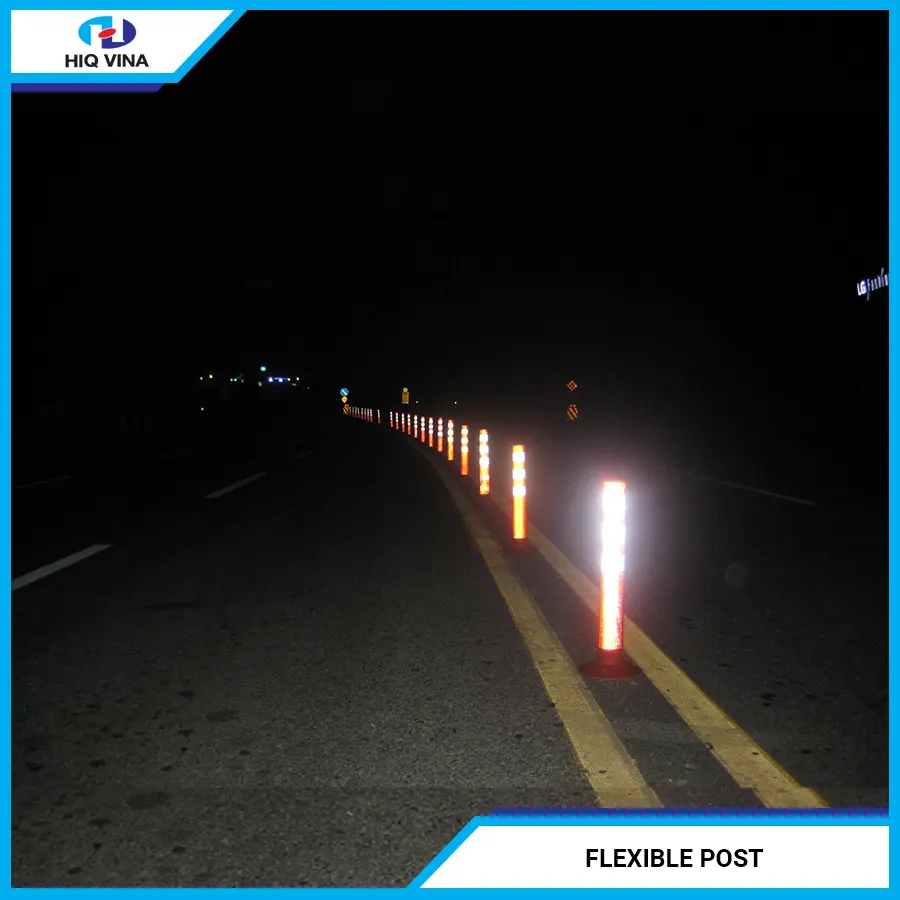

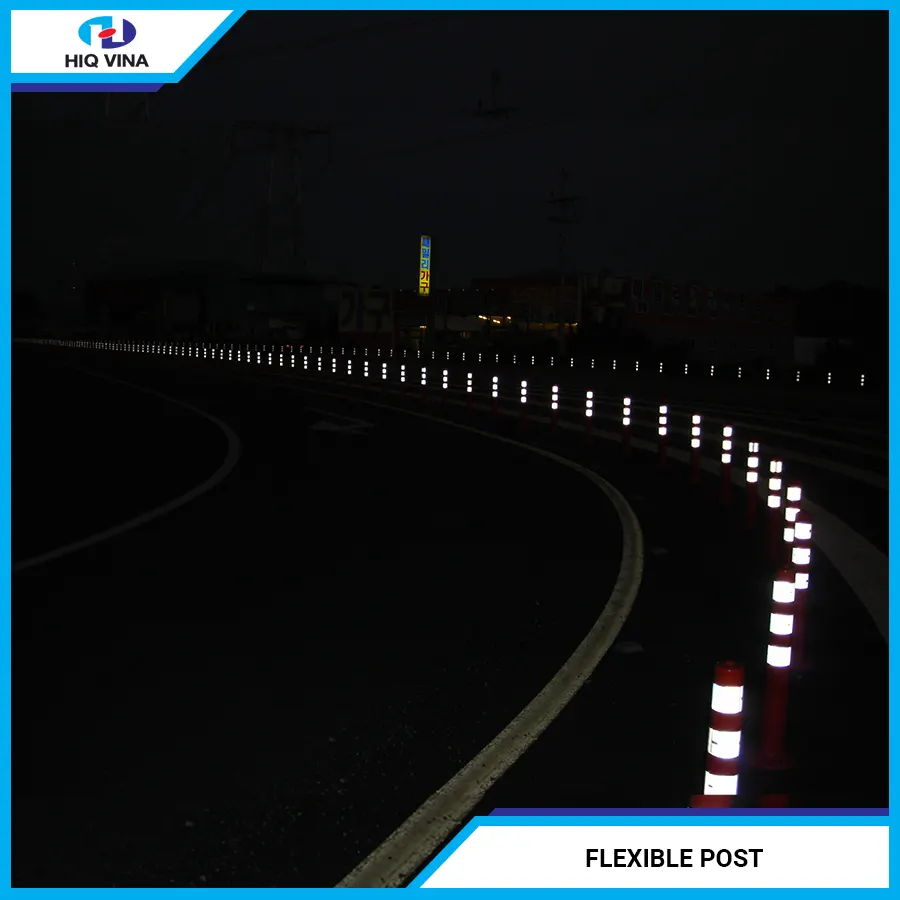

+ Made from Polyurethane, this product offers excellent recovery and elasticity, resists discoloration, and is easily noticeable both day and night.

+ Utilizes microprism reflective technology.

+ Equipped with a reflective film that meets the TCVN 7887:2018 standard.

Flexible Post is made from Polyurethane, a superior material that replaces rubber, offering high durability and excellent elasticity. It is equipped with a reflective sticker. These cylindrical traffic posts are used on many national highways and streets to help reduce the occurrence of serious accidents and traffic congestion.



Installation Locations:

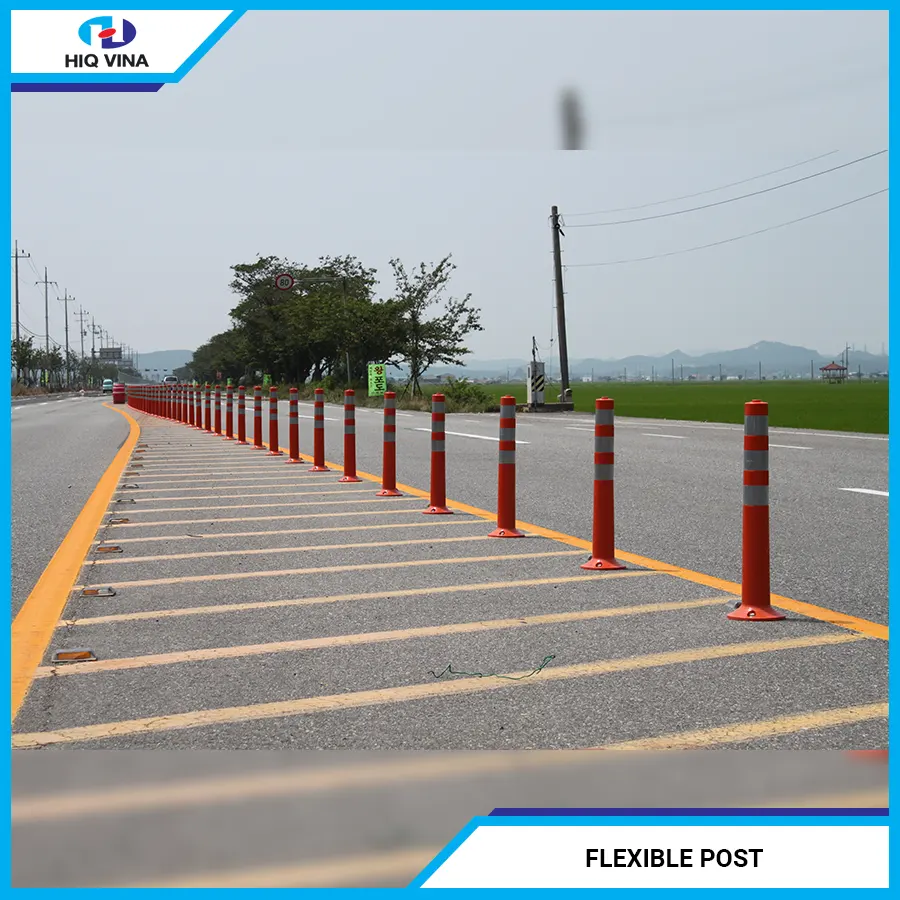

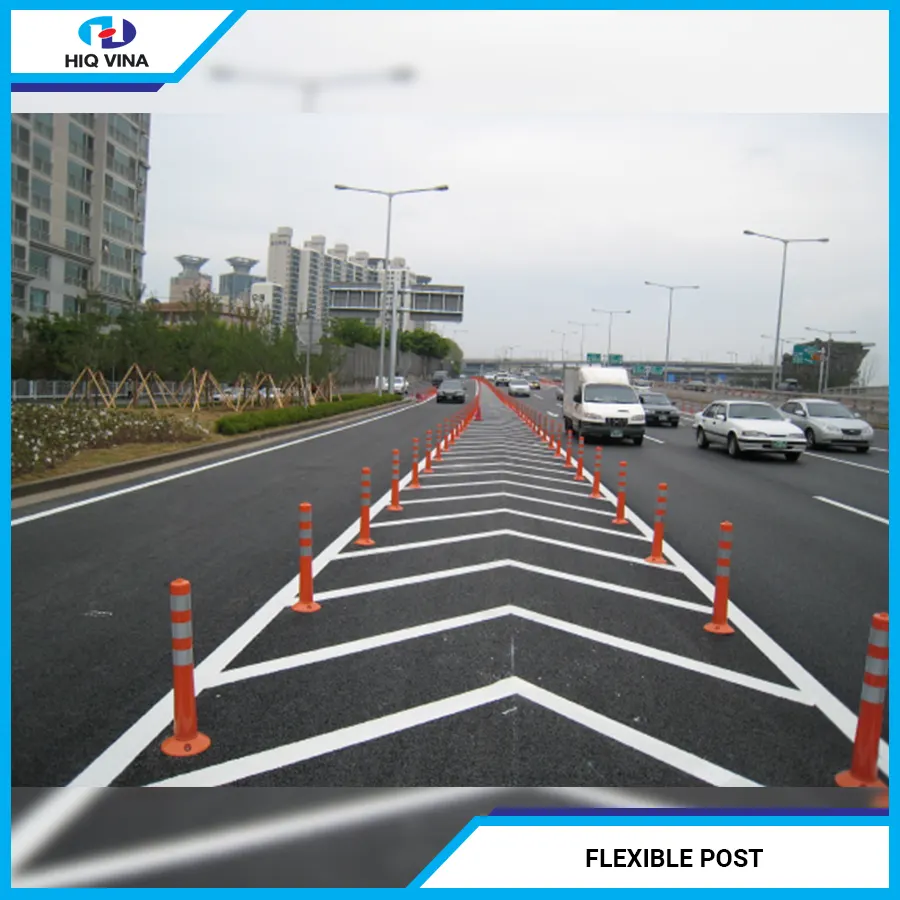

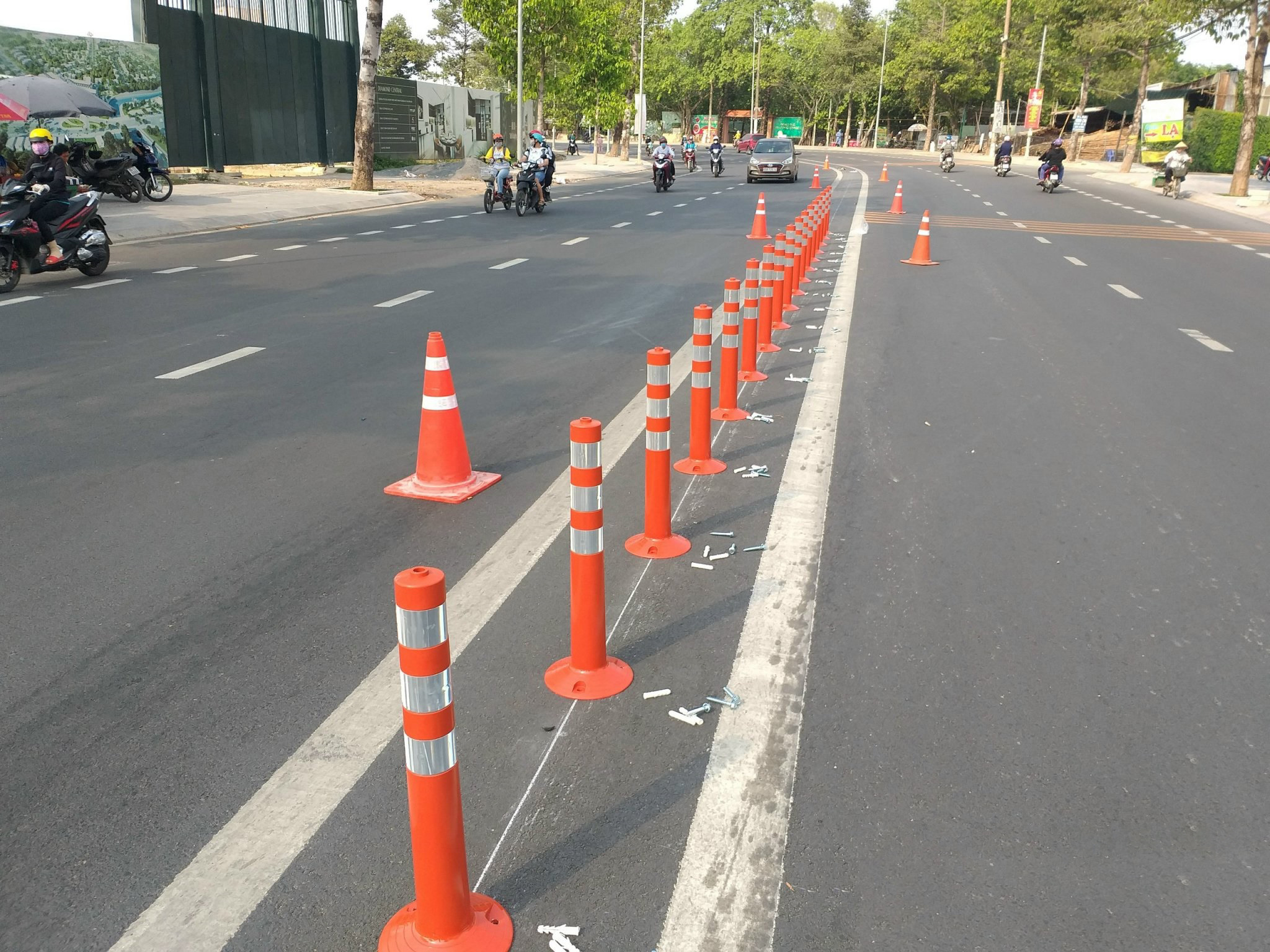

The product is used on national highways, major traffic routes, at intersections such as T-junctions and crossroads, and at the beginning of roads that intersect with priority roads.

Technical Drawing

ø250 x ø80 x H750 mm

z2551843525825_801873a1e7d0a4d183dde5360eecc679

ø200 x ø80 x H750 mm

z2551843424573_9ca7a8f07fa33caa00f5bb574257c51a

ø250 x ø80 x H450 mm

z2551772593618_3f641ccd1b0a2878653a56bb94596686

Installation Guide

a. Safety Precautions:
  1. Prior to construction, a safety notice should be issued to drivers.
  2. Since the construction takes place on the road, safety notices should be issued to both drivers and pedestrians.
  3. Check whether the installation location affects any other areas.

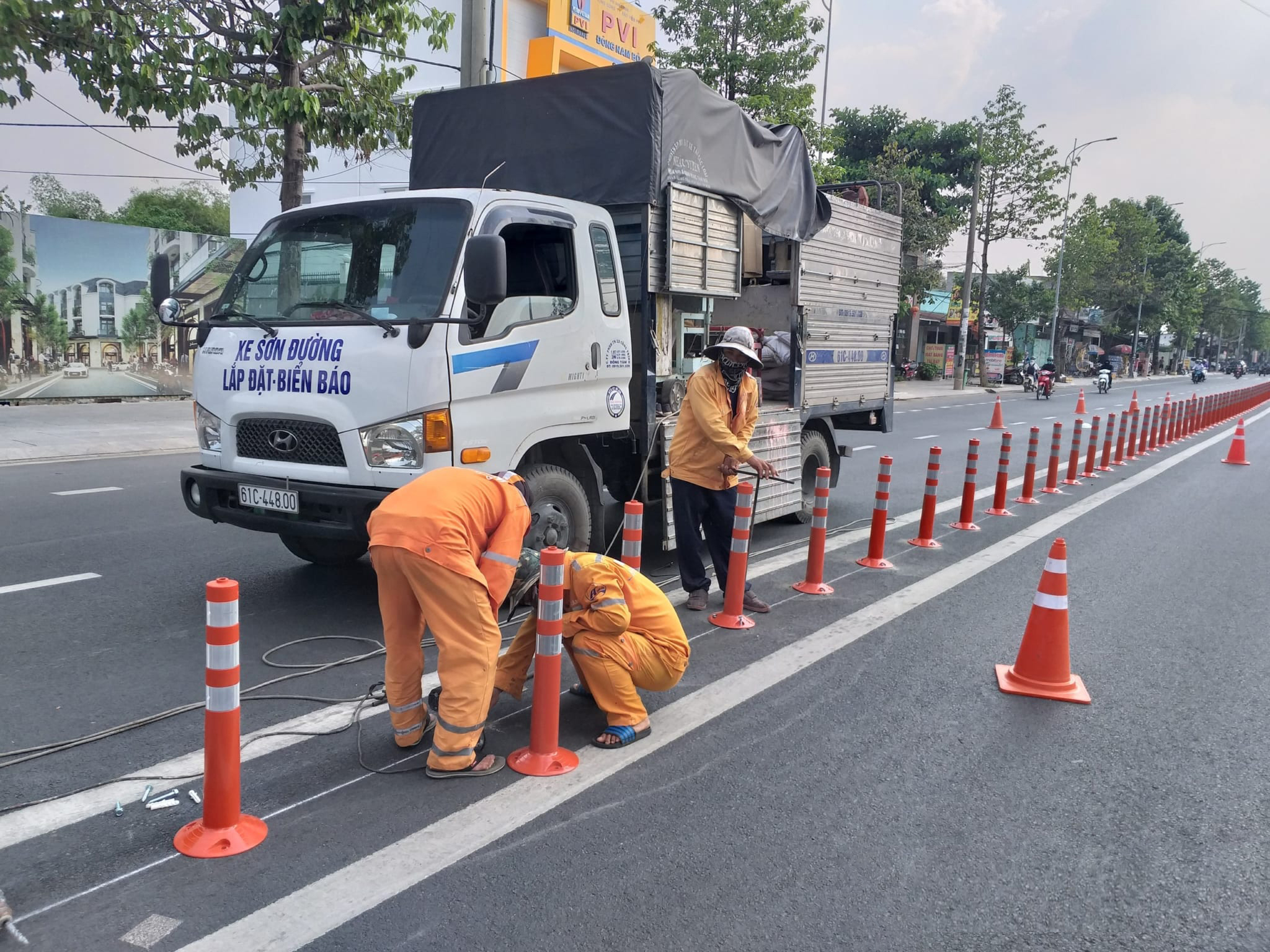

b. Construction:

  1. The installation of traffic cones is carried out according to the design drawings and this technical guide.
  2. Construction personnel should refer to the design specifications provided by the client, determine the measurements for the curve segment (M), the straight segment (M), and the safety area (M), and mark the installation positions.
  3. After marking the base position of the cone, use a ∅14 drill bit to drill a hole with a depth of at least 90mm for the screw.
  4. Place the base of the cone in the drilled position, insert the expansion anchor, and fasten the screw (12× 82㎜) into the base using a 17mm drill bit.
  5. After construction, check the following items: – Ensure there are no abnormal protrusions or scratches on the outer surface of the cone (facing traffic). – Verify that the cones are installed according to the specifications shown in the design drawings.
  6. Clean the surrounding area and remove any safety warning tools.

Document

Click to download the CAD design file (.DWG file extension).

DOWLOAD DOCUMENT

Click to download the PDF design file (.PDF file extension).

DOWLOAD DOCUMENT

Click to download the installation instructions (.PDF file extension).

DOWLOAD DOCUMENT
